UI: How-to guides

Advanced export

Overview

The Export Data feature offers two options:

  • Export as CSV and
  • Advanced export

The export as CSV option outputs all currently plotted Channels into a single CSV file at full fidelity. The advanced export option provides additional control over the export process, allowing you to customize parameters to better suit your specific requirements.

With advanced export, you can:

  • Customize how Channel names appear in the exported CSV file(s)
  • Choose how to split data across multiple files

By default, advanced export applies a concise, human-readable format for Channel names in the column headers. This makes the exported data easier to review and work with, especially when handling larger or more complex datasets.

Advanced export

Instructions

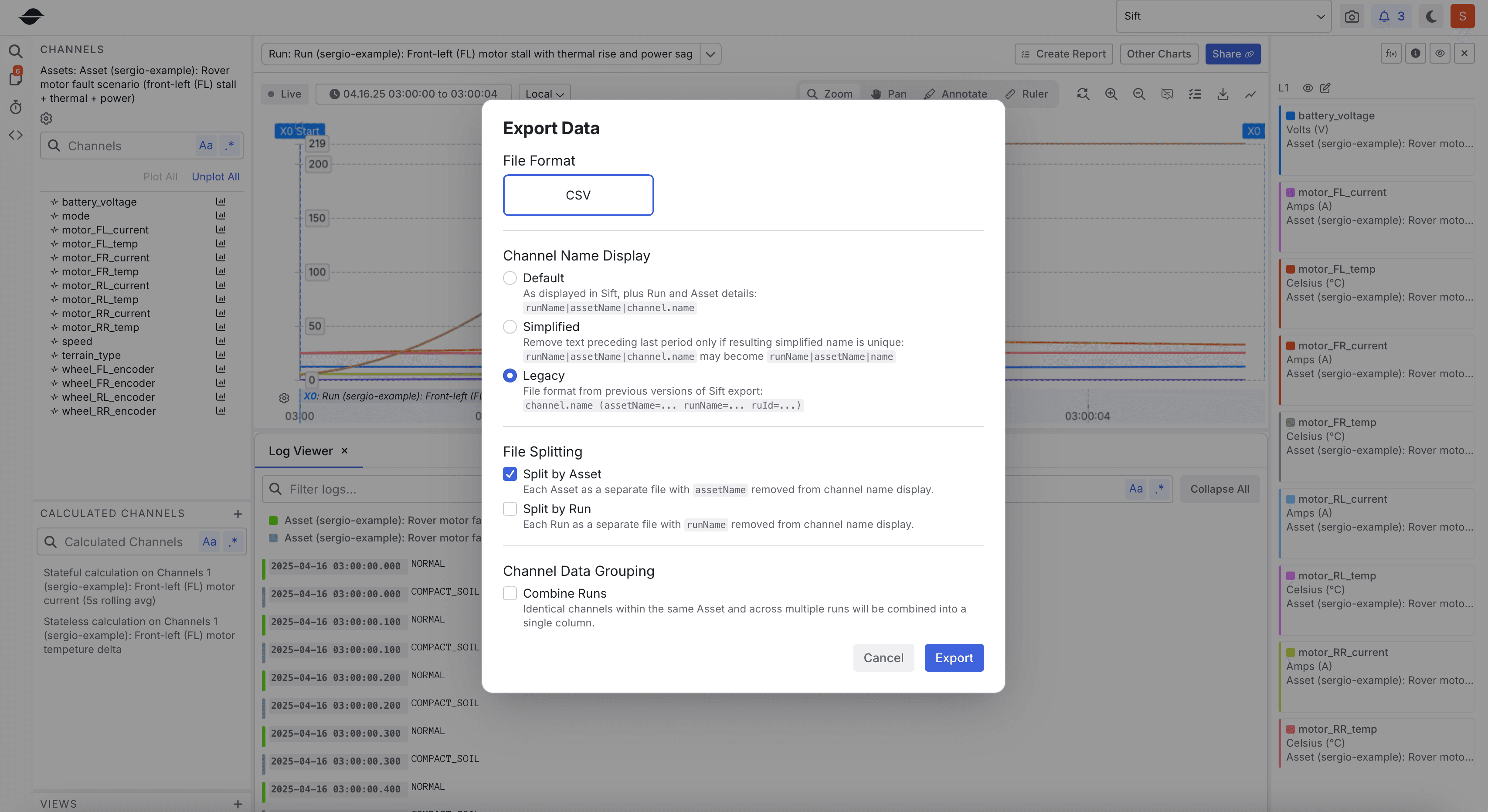

Export data using the advanced export option

To export data using the advanced export option in Explore, consider the following steps:

  1. Plot the Channels you want to export.
  2. Click Export Data.
  3. Select Advanced export.
  4. For Channel Name Display, select an option.
  5. For File Splitting, select an option.
  6. For Channel Data Grouping, select an option.
  7. Click Export.
